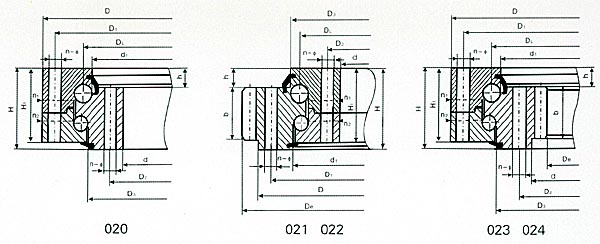

Double Row Angular Contact Ball Slewing Bearing

Double Row Angular Contact Ball Slewing Bearing is a kind of large-scale bearing which can bear axial force, radial force and tilting moment of force at the same time.It is always with mounting hole, lubricant hole, and seal device. For this reason it can easily make the mainframe structure compact and is convenient to conduct circumgyratetion, manufacture, install and maintain. Four Point Contact Ball Slewing Bearing mainly includes non-dental, inner-dental, outer-dental four points contacting ball bearing, two-bank angle contacting thrust ball bearing, cross roller bearing, and three row roller combination bearing. It is widely used in hoister transportation, mining, architecture, harbor machinery, shipping mechanism, radar machinery of high accuracy, and large-scale rotary devices on aspect of missile launcher.

Slewing Bearing No			Dimensions(mm)										Gear		External Gear		Internal Gear
Non-Gear	External Fear	Internal Gear	D	d	H	D1	d1	dn	n	n1	H1	h	b	m	da	z	da	z
020.25.500	021.25.500	023.25.500	616	384	106	580	420	18	20	4	96	26	60	5	644	126	357	72
	022.25.500	024.25.500	616	384	106	580	420	18	20	4	96	26	60	6	646.8	105	350.4	59
020.25.560	021.25.560	023.25.560	676	444	106	640	480	18	20	4	96	26	60	5	704	138	417	84
	022.25.560	024.25.560	676	444	106	640	480	18	20	4	96	26	60	6	706.8	115	410.4	69
020.25.630	021.25.630	023.25.630	746	514	106	710	550	18	24	4	96	26	60	6	790.8	129	482.4	81
	022.25.630	024.25.630	746	514	106	710	550	18	24	4	96	26	60	8	790.4	96	475.2	60
020.25.710	021.25.710	023.25.710	826	594	106	790	630	18	24	4	96	26	60	6	862.8	141	560.4	94
	022.25.710	024.25.710	826	594	106	790	630	18	24	4	96	26	60	8	826.4	105	555.2	70
020.30.800	021.30.800	023.30.800	942	658	124	898	702	22	30	6	114	29	80	8	982.4	120	619.2	78
	022.30.800	024.30.800	942	658	124	898	702	22	30	6	114	29	80	10	988	96	614	62
020.30.900	021.30.900	023.30.900	1042	758	124	998	802	22	30	6	114	29	80	8	1086.4	133	715.2	90
	022.30.900	024.30.900	1042	758	124	998	802	22	30	6	114	29	80	10	1088	106	714	72
020.30.1000	021.30.1000	023.30.1000	1142	858	124	1098	902	22	36	6	114	29	80	10	1198	117	814	82
	022.30.1000	024.30.1000	1142	858	124	1098	902	22	36	6	114	29	80	12	1197.6	97	796.8	67
020.30.1120	021.30.1120	023.30.1120	1262	978	124	1218	1022	22	36	6	114	29	80	10	1318	129	924	93
	022.30.1120	024.30.1120	1262	978	124	1218	1022	22	36	6	114	29	80	12	1317.6	107	916.8	77
020.40.1250	021.40.1250	023.40.1250	1426	1074	160	1374	1126	26	40	5	150	39	90	12	1497.6	122	1012.8	85
	022.40.1250	024.40.1250	1426	1074	160	1374	1126	26	40	5	150	39	90	14	1495.2	104	1013.6	73
020.40.1400	021.40.1400	023.40.1400	1576	1224	160	1524	1272	26	40	5	150	39	90	12	1641.6	134	1156.8	97
	022.40.1400	024.40.1400	1576	1224	160	1524	1272	26	40	5	150	39	90	14	1649.2	115	1153.6	83
020.40.1600	021.40.1600	023.40.1600	1776	1424	160	1724	1476	26	45	5	150	39	90	14	1845.2	129	1349.6	97
	022.40.1600	024.40.1600	1776	1424	160	1724	1476	26	45	5	150	39	90	16	1852.8	113	1350.4	85
020.40.1800	021.40.1800	023.40.1800	1976	1624	160	1924	1676	26	45	5	150	39	90	14	2055.2	144	1545.6	111
	022.40.1800	024.40.1800	1976	1624	160	1924	1676	26	45	5	150	39	90	16	2060.8	126	1542.4	97
020.50.2000	021.50.2000	023.50.2000	2215	1785	190	2149	1851	33	48	8	178	47	120	16	2300.8	141	1702.4	107
	022.50.2000	024.50.2000	2215	1785	190	2149	1851	33	48	8	178	47	120	18	2300.4	125	1699.2	95
020.50.2240	021.50.2240	023.50.2240	2455	2025	190	2389	2091	33	48	8	178	47	120	16	2540.8	156	1942.4	122
	022.50.2240	024.50.2240	2455	2025	190	2389	2091	33	48	8	178	47	120	18	2552.4	139	1933.2	108
020.50.2500	021.50.2500	023.50.2500	2715	2285	190	2649	2351	33	56	8	178	47	120	18	2804.4	153	2203.2	123
	022.50.2500	024.50.2500	2715	2285	190	2649	2351	33	56	8	178	47	120	20	2816	138	2188	110
020.50.2800	021.50.2800	023.50.2800	3015	2585	190	2949	2651	33	56	8	178	47	120	18	3110.4	170	2491.2	139
	022.50.2800	024.50.2800	3015	2585	190	2949	2651	33	56	8	178	47	120	20	3116	153	2488	125
020.60.3150	021.60.3150	023.60.3150	3428	2872	226	3338	2962	45	56	8	124	56	150	20	3536	174	2768	139
	022.60.3150	024.60.3150	3428	2872	226	3338	2962	45	56	8	214	56	150	22	3537.6	158	2758.8	126
020.60.3550	021.60.3550	023.60.3550	3828	3272	226	3738	3362	45	56	8	214	56	150	20	3936	194	3168	159
	022.60.3550	024.60.3550	3828	3272	226	3738	3362	45	56	8	214	56	150	22	3933.6	176	3176.8	145
020.60.4000	021.60.4000	023.60.4000	4278	3722	226	4188	3812	45	60	10	214	56	150	22	4395.6	197	3616.8	165
	022.60.4000	024.60.4000	4278	3722	226	4188	3812	45	60	10	214	56	150	25	4395	173	3610	145
020.60.4500	021.60.4500	023.60.4500	4778	4222	226	4688	4312	45	60	10	214	56	150	22	4879.6	219	4122.8	188
	022.60.4500	024.60.4500	4778	4222	226	4688	4312	45	60	10	214	56	150	25	4895	193	4110	165
